Rev-A-Shelf - Wood Top Mount Pull Out Trash/Waste Container w/Soft Close/Open - 4WCTM-RM-2135DM-2

Rev-A-Shelf

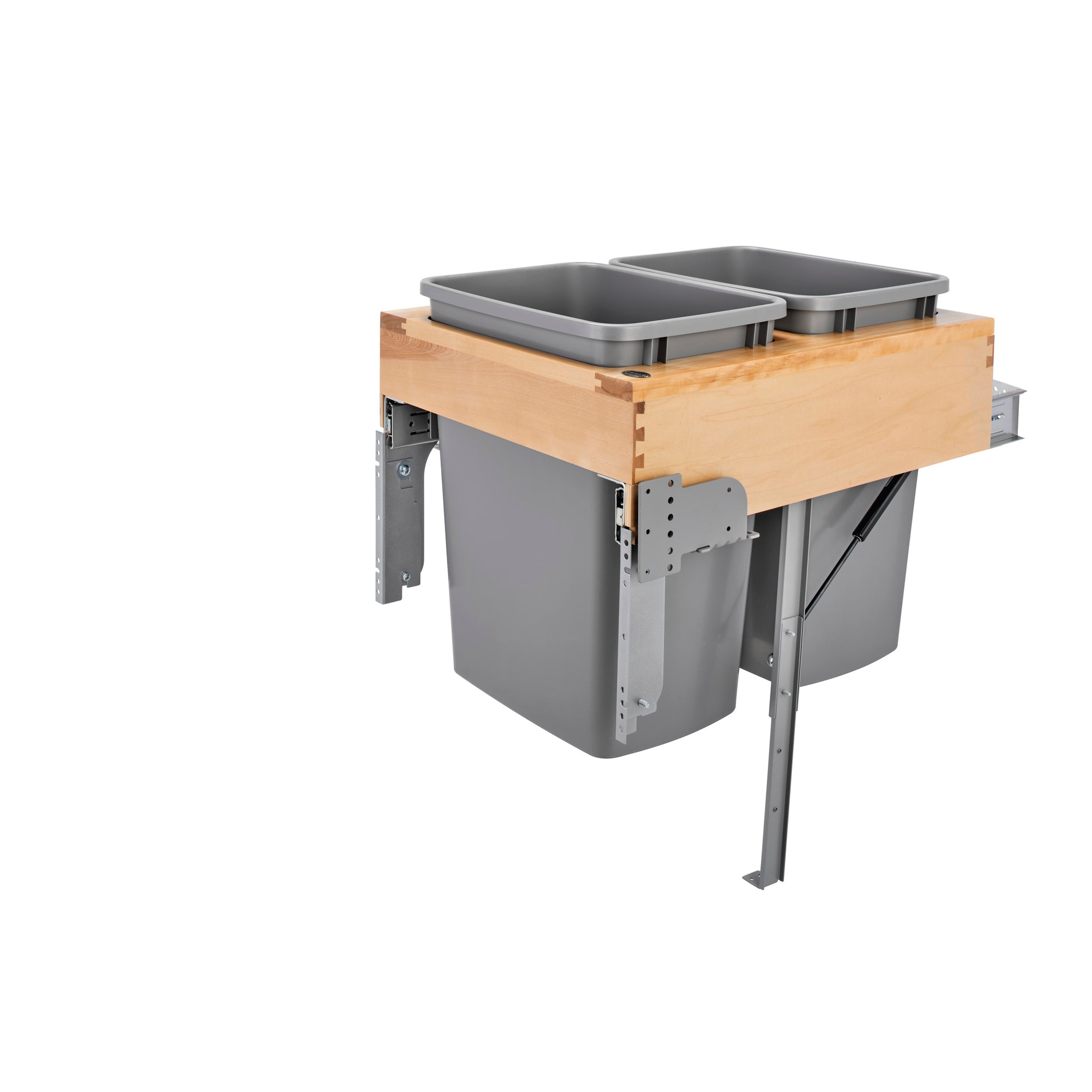

Wood Top Mount Pull Out Trash/Waste Container w/Soft Close/Open

4WCTM-RM-2135DM-2

Only one pull-out trash container series has stood the test of time and that is Rev-A-Shelf Top Mount Series Waste Containers. The Rev-A-Motion Top Mount series will not only close softly, but it will also assist you when opening your unit with its patented slide and dampener system. All of the top mount series also includes a 4-way adjustable door mount bracket that will finish off your installation by attaching your own cabinet door for easy operation.

Included: (2) Silver 35 qt. waste containers, (1) wood frame, (1) pair of slides, mounting hardware, and door mount brackets
- 3-Piece Zinc Plated Heavy Duty Full Extension Ball-Bearing Slide System
- For proper performance, installation requires proper alignment
- Unique adjustable bracket is designed for 1-1/2", 1-5/8" and 1-3/4" face frame
- Once installed, unit can be removed for easy cleaning
- Note: Top-Mount Waste containers come in many different widths as they are specific to a cabinet opening to function properly
- Designed for a cabinet opening width of 17-1/2" to 19-3/4"

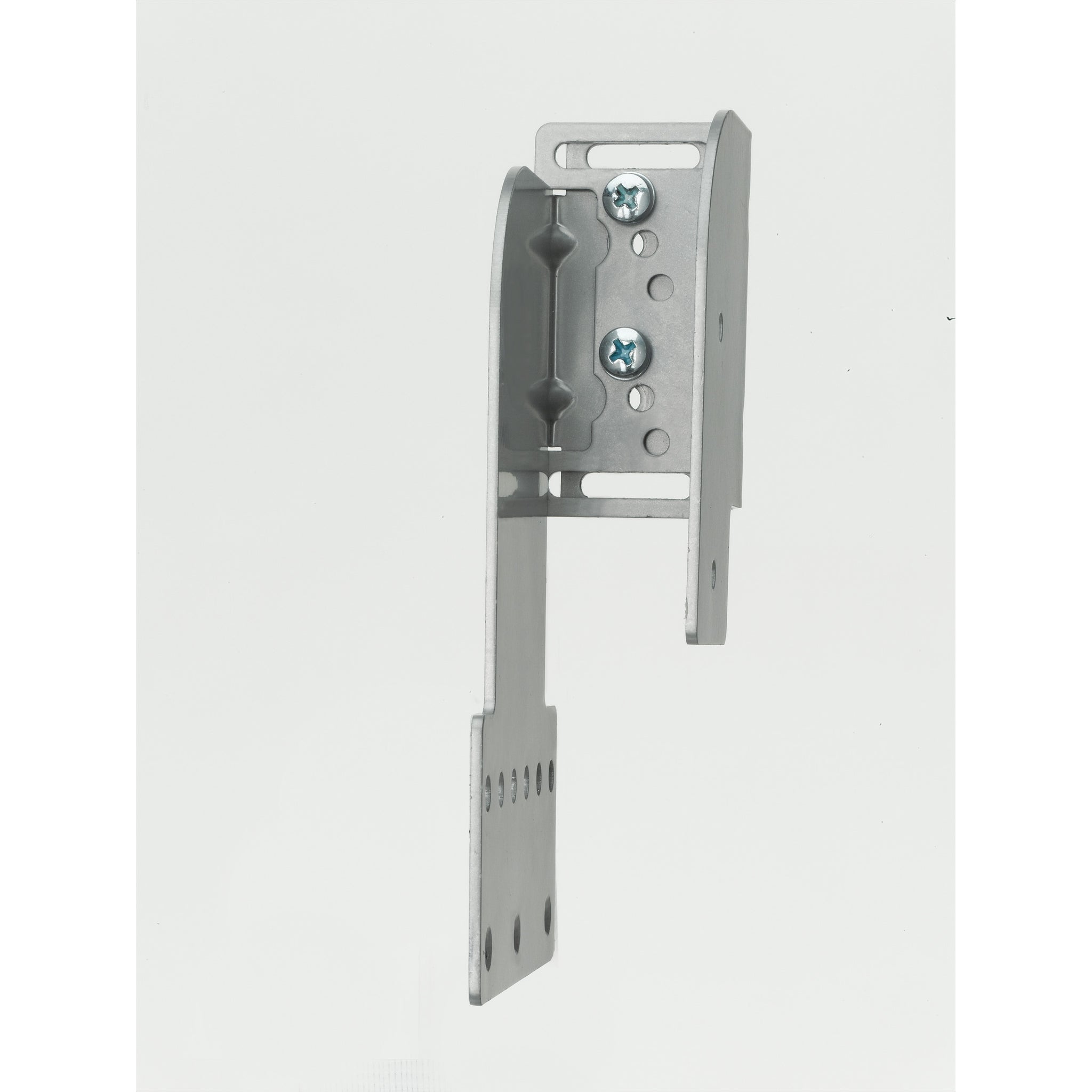

- Door mount brackets: Adjustable door mount brackets are included and required for operation
- Optional Rev-A-Shelf lids available, sold separately
- Construction: Fully Assembled Maple Wood construction with a clear coat finish for durability
-
- Limited Lifetime Warranty

3-Piece Zinc Plated Heavy Duty Full Extension Ball-Bearing Slide System

For proper performance, installation requires proper alignment

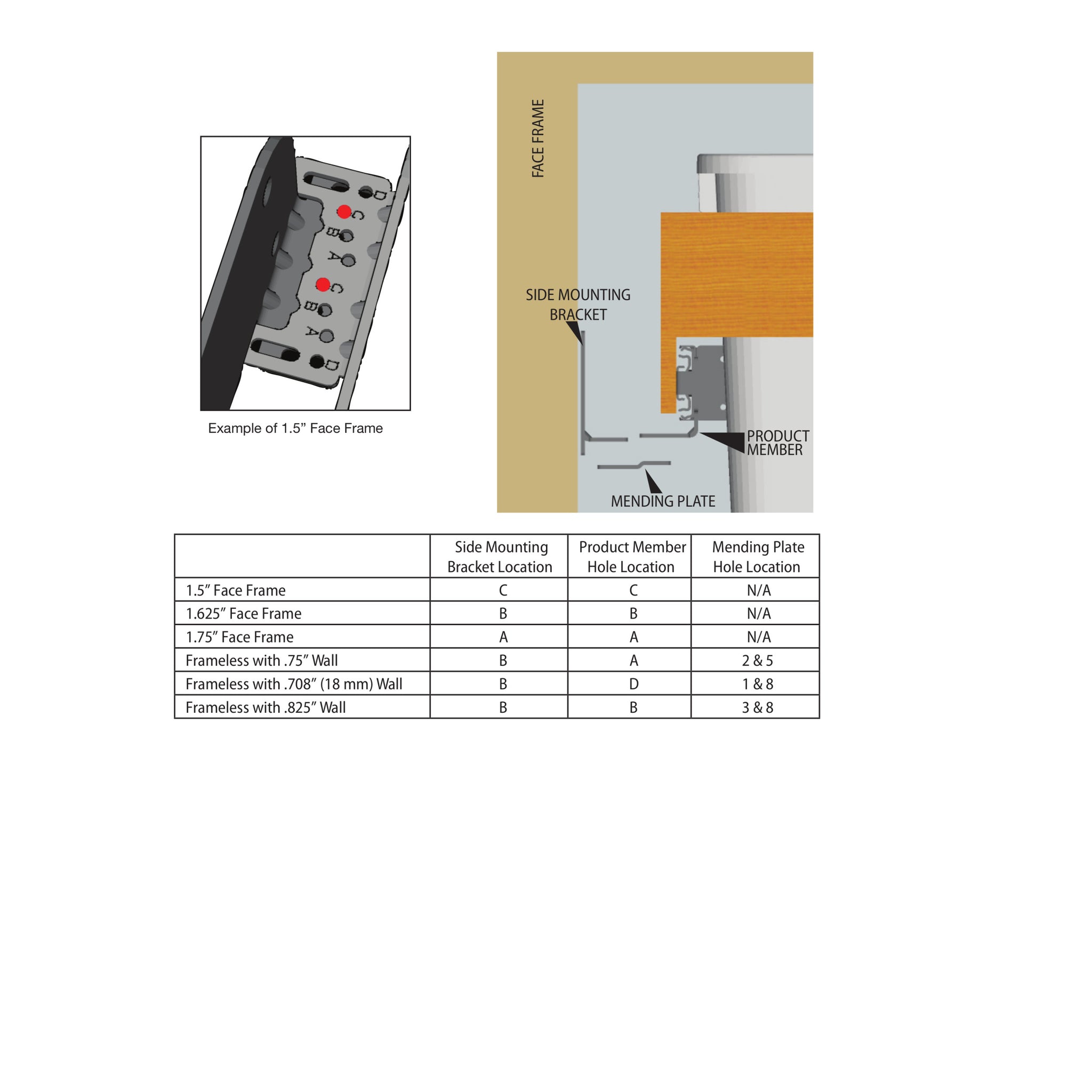

Unique adjustable bracket is designed for 1-1/2", 1-5/8" and 1-3/4" face frame

Once installed, unit can be removed for easy cleaning

Note: Top-Mount Waste containers come in many different widths as they are specific to a cabinet opening to function properly

Designed for a cabinet opening width of 17-1/2" to 19-3/4"

Door mount brackets: Adjustable door mount brackets are included and required for operation

Optional Rev-A-Shelf lids available, sold separately

Construction: Fully Assembled Maple Wood construction with a clear coat finish for durability

Limited Lifetime Warranty

Accessories

RV-35-LID-17-1

RV-35-LID-G-1

RV-35-LID-22-1

18.25"W x 21.75"D x 21"H

Cabinet Side Mounted
